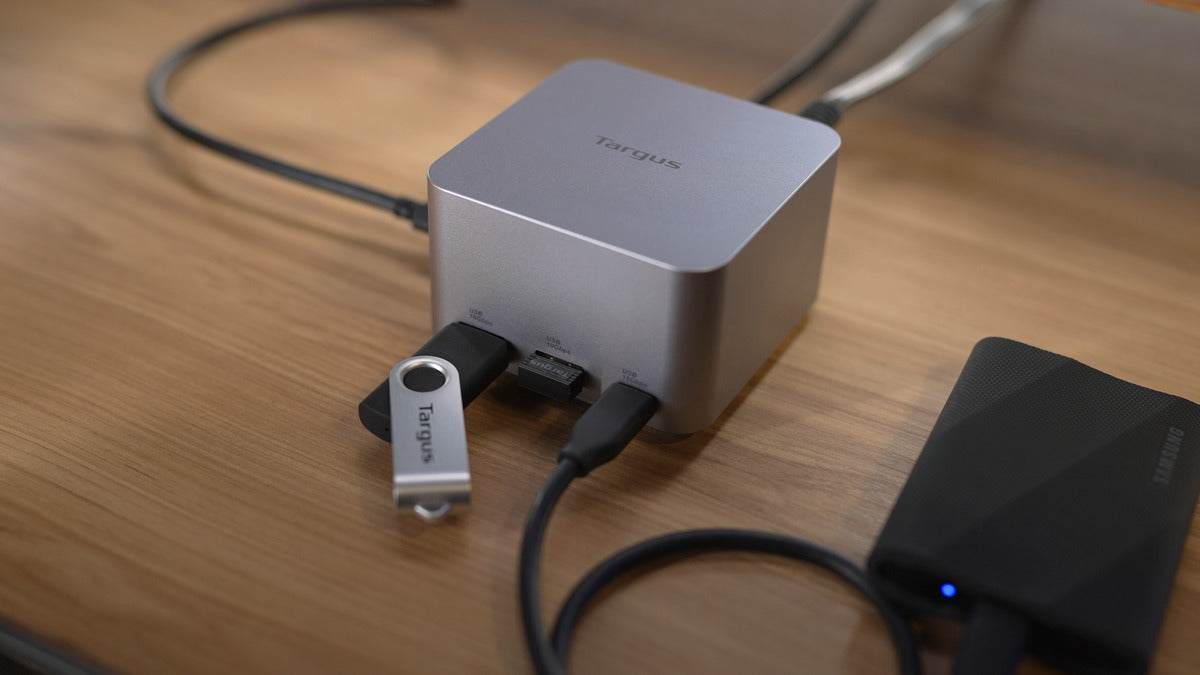

Application Note: Travel Light with the Targus DOCK402

Quick Answer

The Targus DOCK402 is a compact 2-in-1 USB-C travel dock and 140W GaN charger for travel, hybrid work, home offices, and conference rooms. Connected to a utility wall outlet in AC-powered mode, its integrated GaN charger replaces the separate charger a Power Delivery pass-through dock requires. Without utility power it operates as a bus-powered USB-C dock.

Key Takeaways

• 140W USB-C PD 3.1 EPR host charging. USB PD 3.0 hosts negotiate up to 100W.

• Single HDMI 2.1 port, up to 8K at 30Hz.

• Driverless on Windows, macOS, iOS/iPadOS, ChromeOS, Linux, Android, and Samsung DeX.

1. Application Overview

For travelers who normally carry a USB-C Power Delivery pass-through dock plus a separate GaN power adapter, the Targus DOCK402 combines both functions in one compact device. When connected to utility (wall) power, one USB-C host connection can charge a computer while enabling a single HDMI display, Gigabit Ethernet, and USB peripherals. The DOCK402 can also operate as a bus-powered USB-C travel dock when utility power is unavailable, subject to the connected host’s available downstream USB-C power.


Best-fit scenario  A traveler or hybrid worker who needs one external display and a complete desk connection without packing a separate laptop power brick and pass-through dock.

Why GaN matters for mobile power

Gallium nitride, or GaN, supports high switching efficiency and high power density. In practical travel terms, it enables a smaller, lighter power stage than many traditional silicon-based solutions at a comparable output class. The integrated GaN power stage eliminates the separate USB-C charger normally required by a pass-through dock.

• One device replaces the typical mobile dock and separate USB-C PD charger.

• USB-C PD 3.1 Extended Power Range provides up to 140W to a compatible host when connected to utility power; USB PD 3.0 hosts negotiate up to 100W.

• The included AC power cord connects directly to the dock, simplifying hotel, temporary-office, and conference-room setup.

2. Core USB-C Dock Connectivity

Compatibility note  Video requires a host that supports USB-C DisplayPort Alternate Mode. Maximum resolution, peripheral availability, and performance depend on the host, cable, display, operating system, and available host power.

3. Travel, Work-from-Home, and Conference-Room Uses

The DOCK402 is a compact USB-C travel dock, portable laptop docking station, 140W GaN charger, and single-monitor connectivity hub for flexible and hybrid work environments.

Travel and mobile work

Connect utility power for dock connectivity plus host charging, or use bus-powered mode for dock connectivity when an outlet is unavailable and the host can supply sufficient downstream USB-C power.

Work from home

The DOCK402 supports one large external monitor, Gigabit Ethernet, and three 10Gbps USB ports through a single host cable.

Conference rooms and collaboration spaces

The single-HDMI architecture is suited to a room display, television, or projector. A presenter can connect a compatible USB-C computer or mobile device and access available room peripherals.

Driverless, cross-platform operation  The DOCK402 uses native USB-C DisplayPort Alt Mode video and standard USB and Ethernet functions. It does not require a proprietary display driver or special dock application for compatible MacBook, Windows PC, Linux PC, Chromebook, iOS/iPadOS, Android, or Samsung DeX-capable devices. Samsung DeX availability and display behavior depend on the connected Samsung device.

4. Charging Computers, Phones, and USB-C Devices

When connected to a utility wall outlet and operating in AC-powered mode, the host-facing USB-C port is a USB Power Delivery source. It can power or charge a compatible laptop, Chromebook, mobile phone, tablet, handheld system, or power bank. The DOCK402 advertises power capabilities up to 140WDC, and the attached device accepts only a profile that both sides negotiate.

• The DOCK402 does not supply USB Power Delivery charging from its internal GaN power stage unless it is connected to utility power and operating in AC-powered mode.

• A mobile phone does not automatically receive 140W. It draws only the power profile supported and requested by the phone and cable.

• 140W operation requires a USB PD 3.1 EPR-capable device and an EPR-rated USB-C cable like the one included.



5. Dynamic Power Share Operation

In AC-powered mode, Power Share dynamically reserves and reallocates the available power budget as downstream USB ports are populated. As more powered ports are used, maximum available host power decreases.

Table 1. DOCK402 Power Share allocation

Note: Actual power consumption is determined by USB Power Delivery negotiation and the load of each connected device. In the source matrix, USB DFP refers to the three downstream USB ports: one USB-C port and two USB-A ports.

6. Thermal Management and OTP Mode

Because the DOCK402 combines a high-power GaN charger and USB-C dock in one compact enclosure, appropriate placement supports reliable high-power operation. Place it on a hard, stable, uncluttered surface with open space around it. Keep it away from direct sunlight, heaters, other heat-producing equipment, enclosed bags, soft furnishings, and confined spaces that can retain heat.

Help the dock stay cool  Avoid covering, enclosing, stacking, or placing the DOCK402 next to another heat source. Good placement reduces heat buildup and the likelihood of Over Temperature Protection engaging.

How Over Temperature Protection behaves

OTP1 engages when the internal sensor exceeds 62°C (approximately 144°F) minimum host PD output is reduced to 60W.

OTP2 engages when the internal sensor exceeds 67°C (approximately 153°F) minimum host PD output is reduced to 45W.

OTP exits after the sensor cools to 57°C (approximately 134°F).

HDMI, USB, and Ethernet remain active because the dock does not perform a USB re-enumeration solely when entering or leaving OTP.

PD reinitialization in high-performance applications

Entering or exiting OTP can change the power profiles available from the DOCK402 and may trigger reinitialization or renegotiation of the USB Power Delivery contract. This behavior is most noticeable with performance-heavy systems operating at 100WDC or more. Host behavior can vary by platform and firmware.

7. Power Button, AC-Powered Mode, and Bus-Powered Mode

The DOCK402 power button selects between AC-powered mode and bus-powered mode rather than acting as a traditional master on/off control. In AC-powered mode, the dock operates from utility power and can provide negotiated USB Power Delivery charging to the connected host. In bus-powered mode, the dock operates from power supplied by the host’s USB-C connection. Display, USB, and Ethernet functions may remain available, subject to the host’s downstream USB-C power budget, while host charging is disabled.

Bus-powered operation explained  In bus-powered mode, the DOCK402 can continue operating from power supplied by the connected host’s USB-C port. Available display, Ethernet, USB functions, and attached-peripheral support depend on the host’s downstream power capability and the total connected load. The dock does not provide charging power to the host in this mode.

Utility power is required for charging  To supply USB Power Delivery charging to the host or provide its AC-derived charging power to connected devices, the DOCK402 must be connected to a utility wall outlet and operating in AC-powered mode. After returning from bus-powered mode to AC-powered mode, disconnect and reconnect the USB-C host cable so a new PD contract can be established.

The selected bus-powered mode persists if utility power is unplugged and reconnected. It also persists if the host is disconnected and reconnected. Press the power button again to return to AC-powered mode.

8. Quick Setup Checklist

• For host charging, connect the AC power cord between a utility wall outlet and the DOCK402 and select AC-powered mode.

• For bus-powered dock operation, connect a compatible USB-C host. Available functions depend on the host’s downstream USB-C power.

• Connect one HDMI monitor, television, or projector if video is required.

• Connect Ethernet and USB peripherals as needed, recognizing that bus-powered peripheral support depends on host power.

• Confirm the host charging status, LED color, power-button mode, and display settings.

• Place the dock on a hard, uncovered surface away from direct sunlight and other heat sources.



9. Summary

The Targus DOCK402 is a practical dock-plus-power solution for travel, hybrid work, home offices, conference rooms, and shared desks. Connected to a utility wall outlet in AC-powered mode, its integrated 140W GaN charger can replace the separate charger required by a Power Delivery pass-through dock. When utility power is unavailable, the DOCK402 can operate as a bus-powered USB-C dock using downstream power from a compatible host, but it will not charge the host and available dock functions depend on the host power budget. Its native single-display architecture provides broad, driverless compatibility with suitable Windows, macOS, iOS/iPadOS, ChromeOS, Linux, Android, and Samsung DeX devices.

Technical source notes

• Targus DOCK402 User Guide, draft 410-4765-xxxA, 2026.

• Targus DOCK402 product planning presentation, 2026.

• DOCK402TT PVT/SMS engineering test summary, April 2026.

• DOCK402 final EVT power-button behavior clarification, February 2026.

FAQ

Does the DOCK402 charge my laptop without a wall outlet?
No. Host charging requires utility power and AC-powered mode. In bus-powered mode the dock runs on host power and charging is disabled.

Why did charging stop after I pressed the power button?
The power button switches between AC-powered and bus-powered mode rather than acting as on/off. The LED turns red in bus-powered mode. Press it again to return to AC-powered mode, then disconnect and reconnect the USB-C host cable so a new PD contract can be established.

Does my phone receive the full 140W?
No. A phone draws only the power profile it and the cable support and request.

What do I need for 140W charging?
A USB PD 3.1 EPR-capable device and an EPR-rated USB-C cable, like the one included.

How much host power do I lose with all USB ports in use?
Host power drops to 100W with the host plus three USB-A ports active, for 118.5W total across all outputs.

Do I need to install a driver?
No. The DOCK402 uses native USB-C DisplayPort Alt Mode video with standard USB and Ethernet functions.

Does the display drop out when the dock gets hot?
 No. HDMI, USB, and Ethernet remain active during Over Temperature Protection. Host charging power is reduced.
