Overview

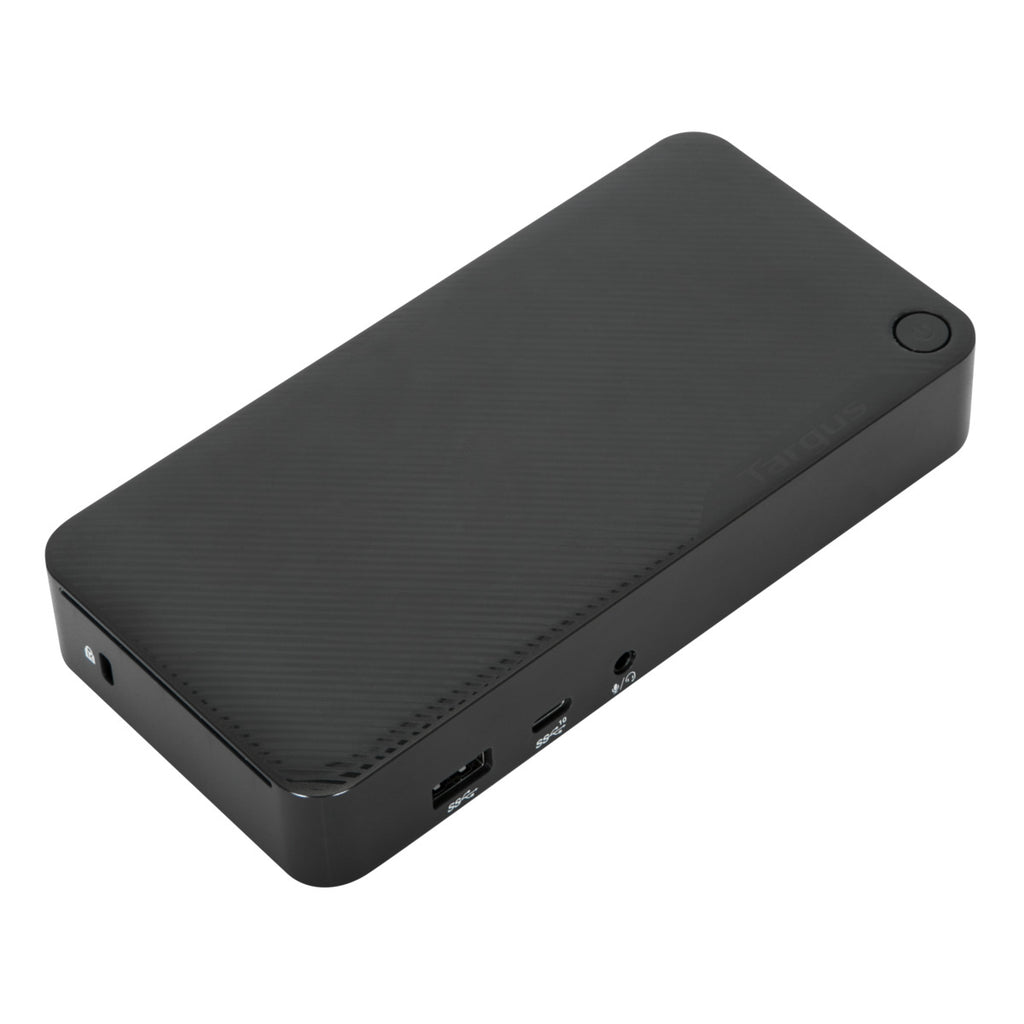

Expand your workstation and connect to nearly any laptop with the Universal USB-C DV4K DP Docking Station with 100W Power Delivery. Designed to support and power a wide variety of laptop brands and operating systems, this dock packs all of the ports and power you need.

With video performance up to 4096x2160 p60 for dual displays or single 5120x2880 p60 via DisplayPort, you are sure to get crisp and clear images. Connect all of your favorite accessories with a combination of USB-A (3x USB 3.2 Gen 1 Type-A ports) and USB-C (1x USB 3.2 Gen 2 Type-C), plus Ethernet and audio ports.

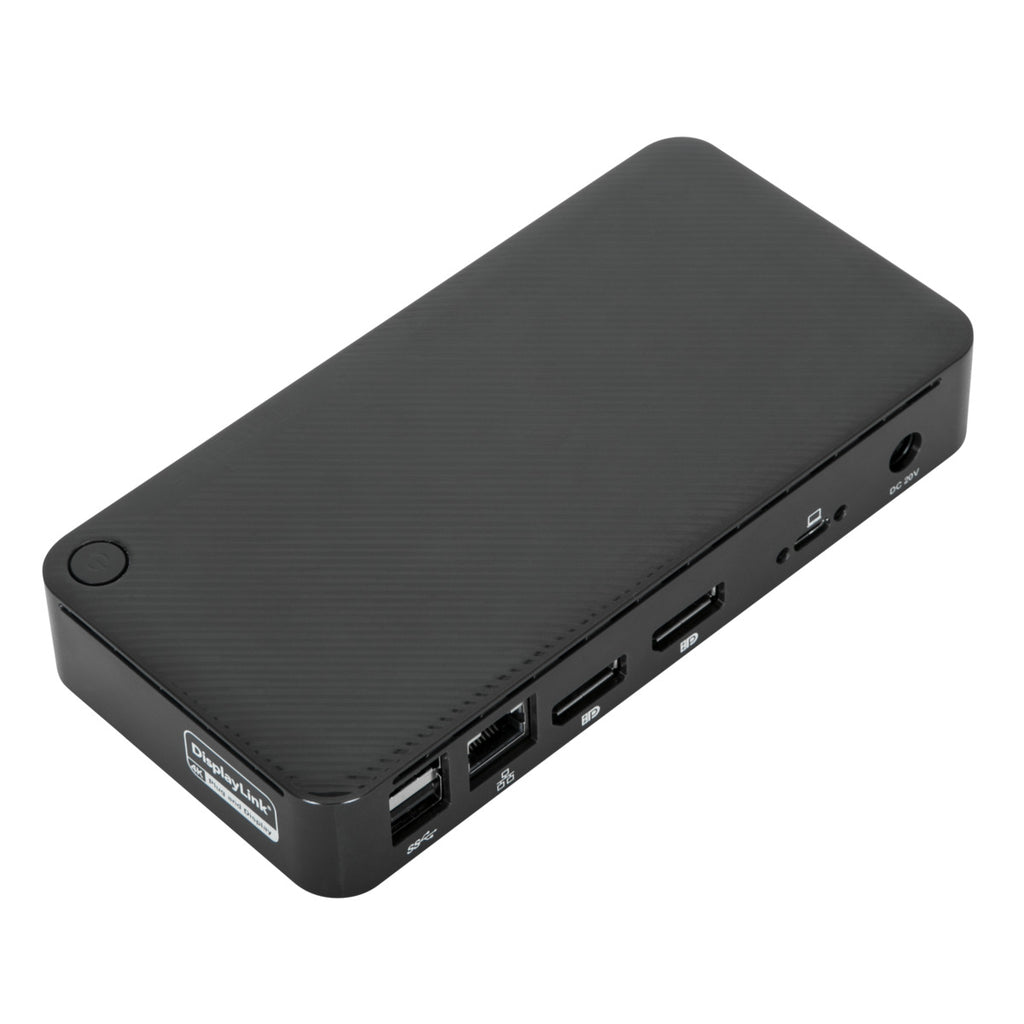

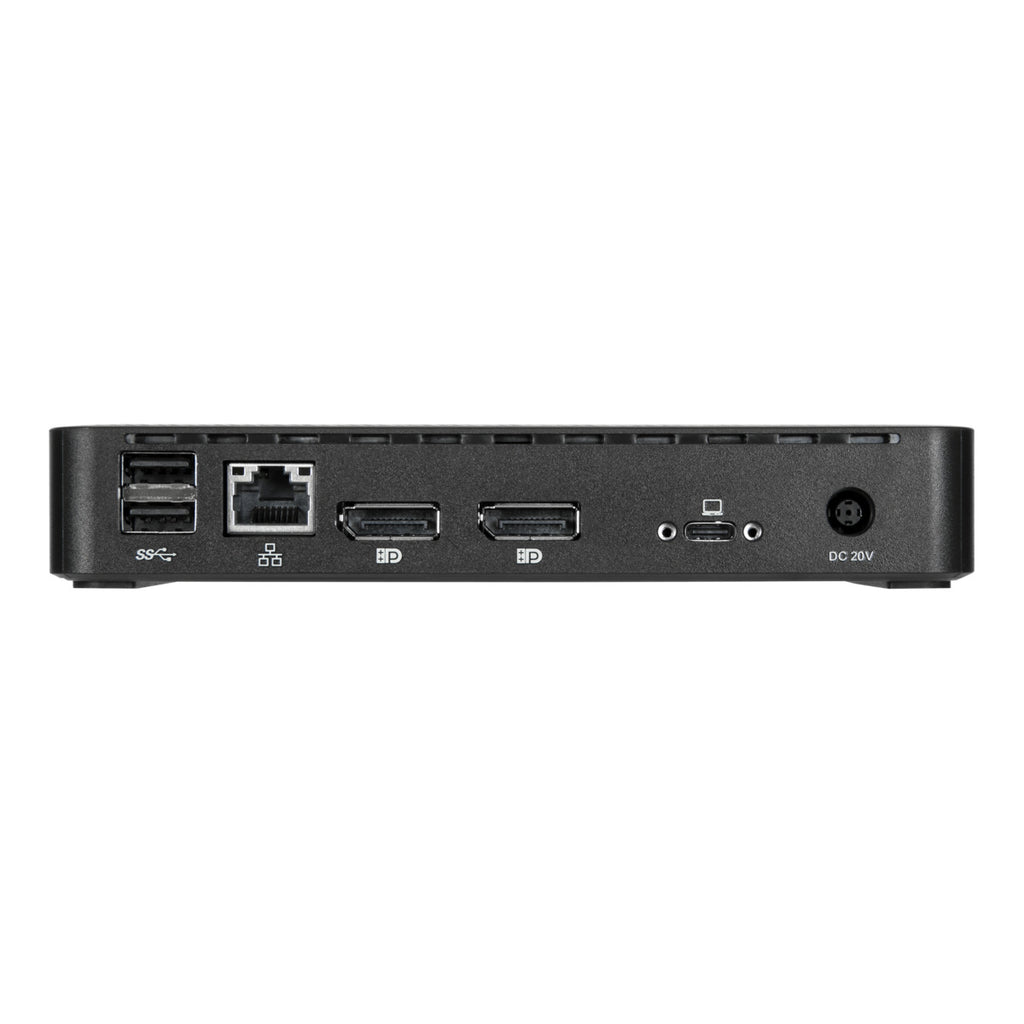

Supports Two DisplayPort Monitors

Supports Two DisplayPort Monitors

Access the latest display technology with two DisplayPort ports that creates a rich, ultra-high-definition viewing experience.

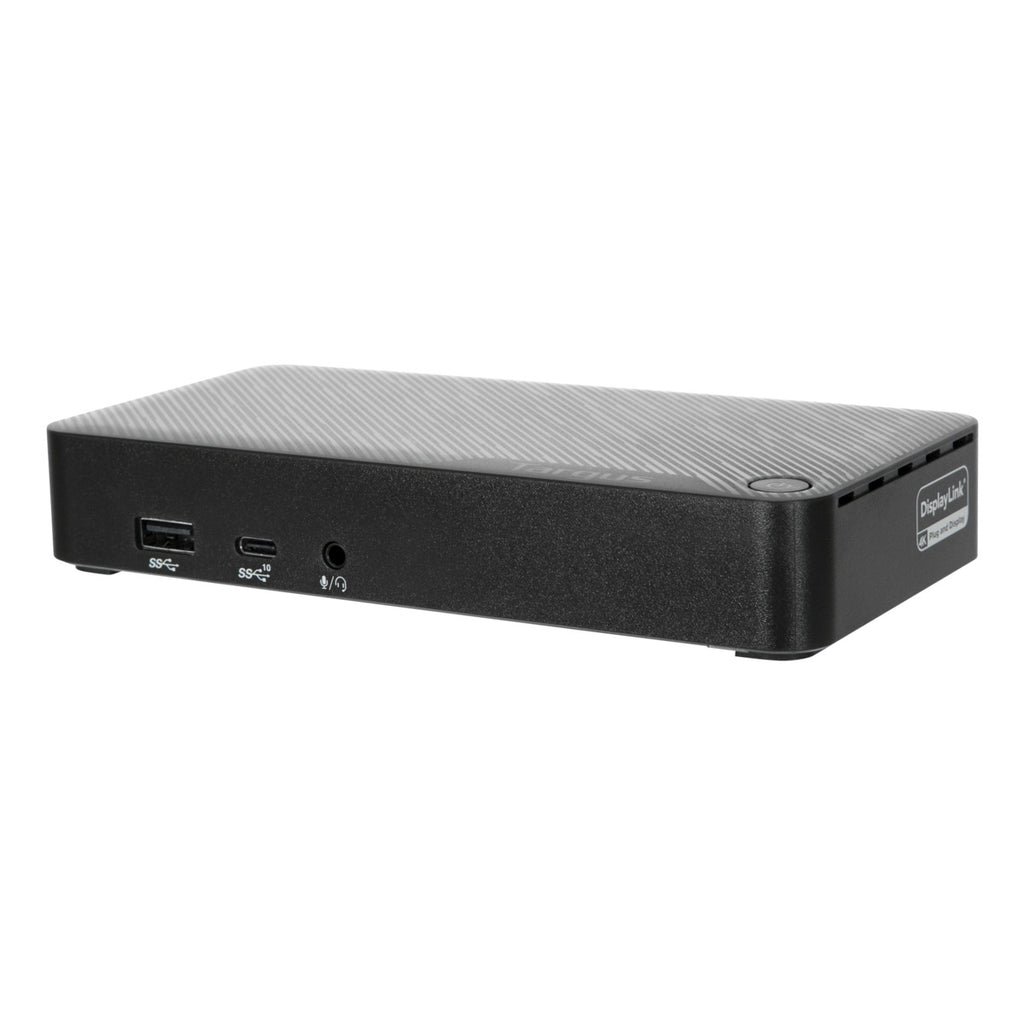

Onboard USB 3.2 for Advanced Peripherals and Charging

Three USB 3.2 Gen 1 Type-A ports and 1 USB 3.2 Gen 2 Type-C 10Gbps port make it simple to add the latest keyboards, exterior hard drives, and other peripherals to customize the workspace experience.

Onboard USB 3.2 for Advanced Peripherals and Charging

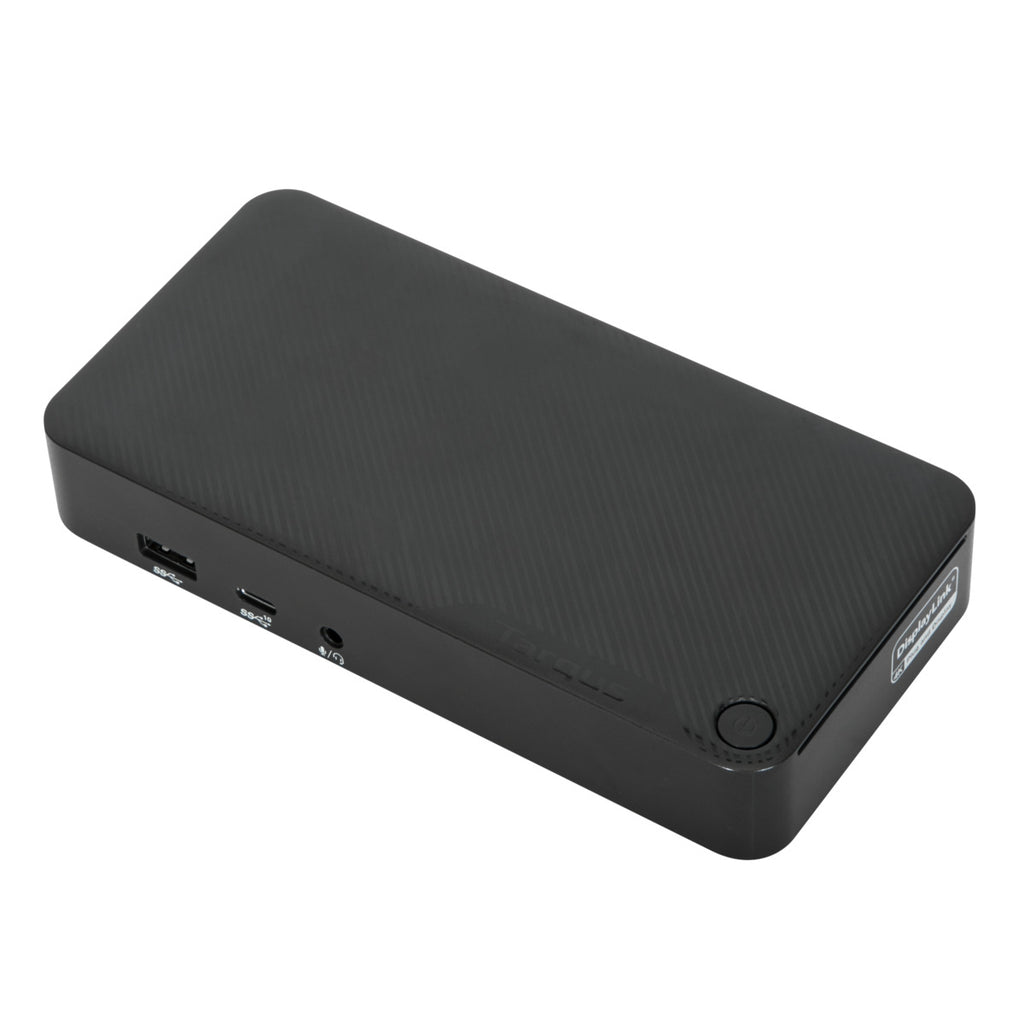

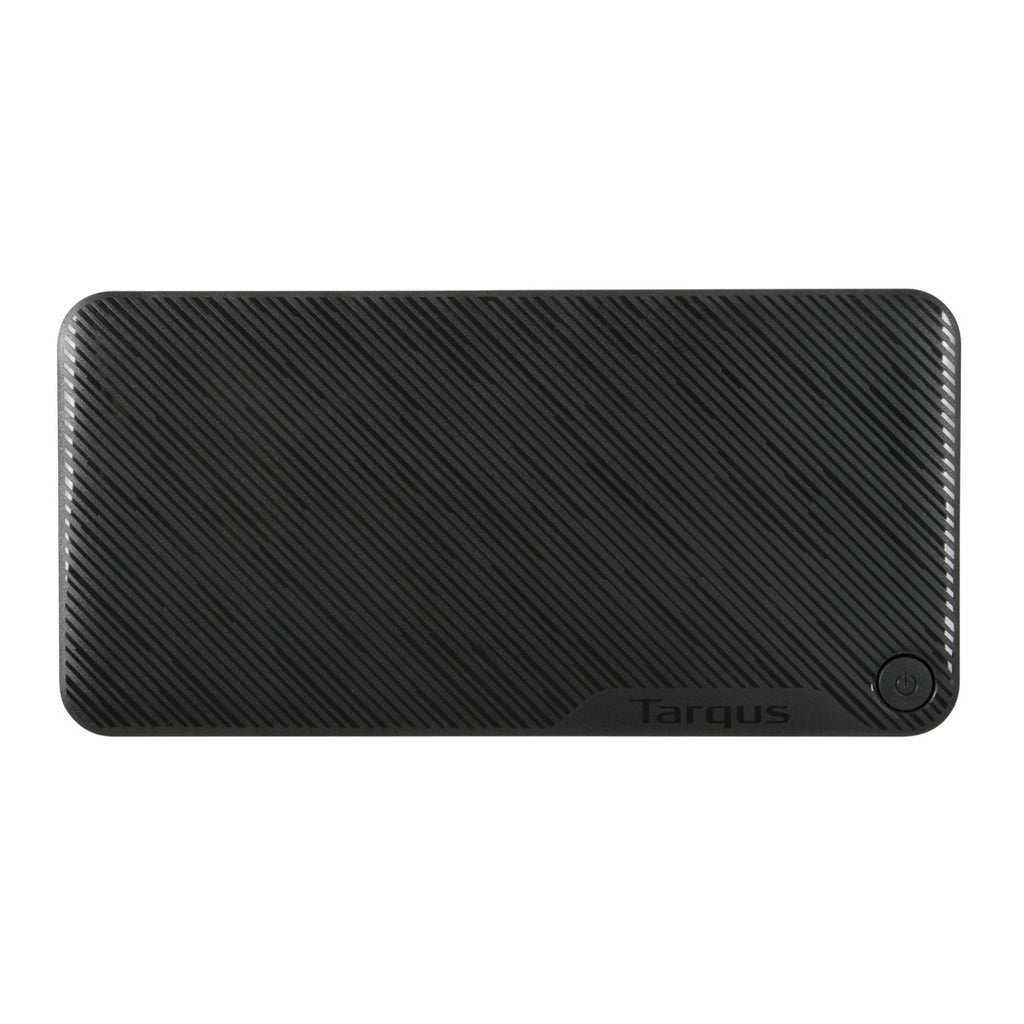

Innovative Design

Innovative Design

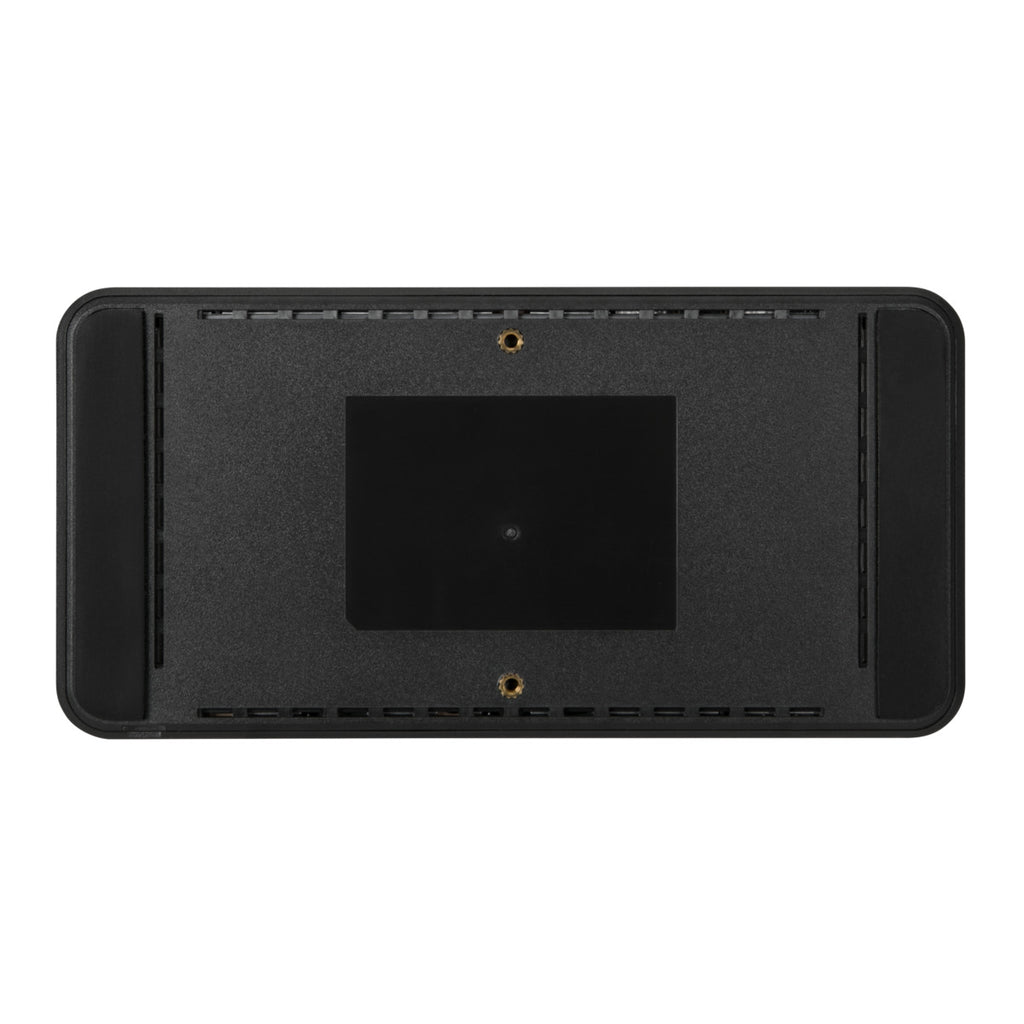

Compact and sleek, this dock is a sure fit for shrinking desktops and tight spaces. The dock is also equipped with a VESA bracket mounting provision, which allows for use of the Targus VESA Mount Bracket (ACX003GLZ – sold separately) to hold your dock behind your display for even greater space savings.

Enterprise Software Suite: A Targus Exclusive

Enhance security and improve user experience with the Targus Enterprise Software Suite for DOCK316USZ.

• Wi-Fi Auto Switch: auto enables/disables Wi-Fi functionality when the dock’s Ethernet connection is active, reducing unnecessary network traffic and enabling faster connection speeds.
• MAC Address Cloning: auto replaces the MAC address of the connected Targus Ethernet network adapter with any (Wired Ethernet, Wireless Ethernet, Bluetooth) MAC address of the local host, supporting device-based authentication methods.

Enterprise Software Suite: A Targus Exclusive

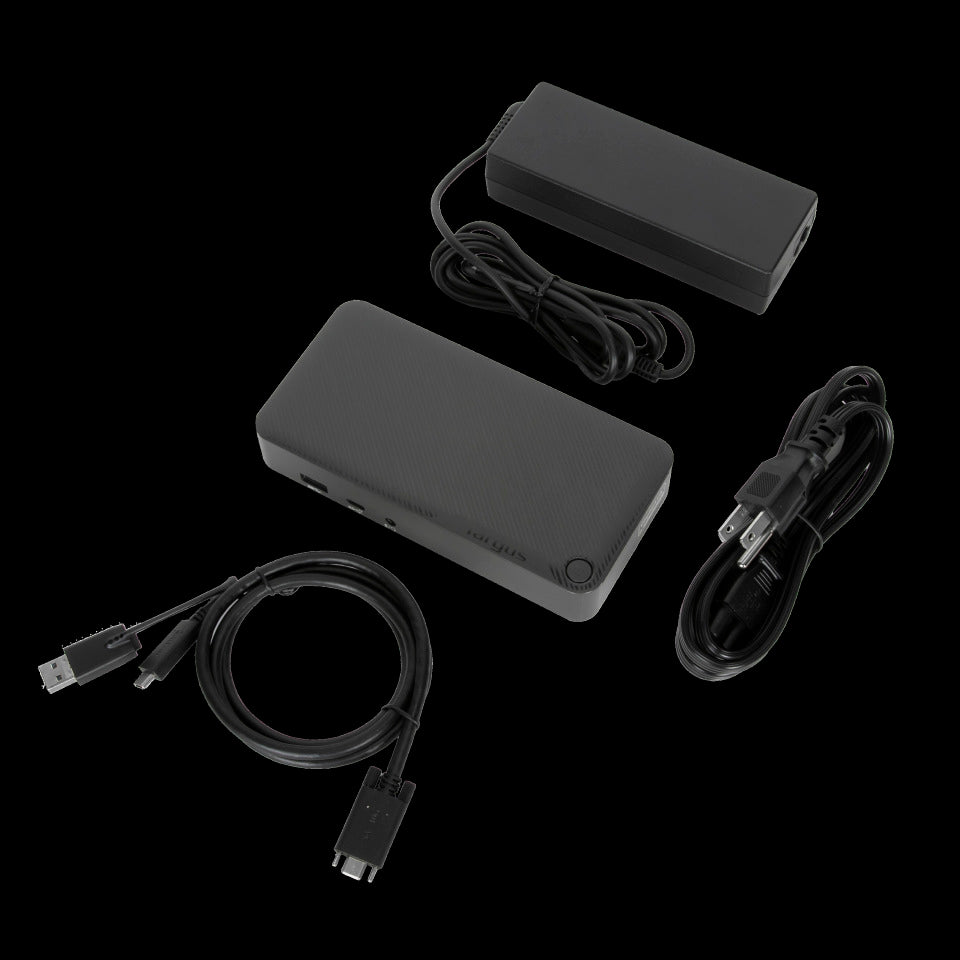

What’s in the Box

What’s in the Box

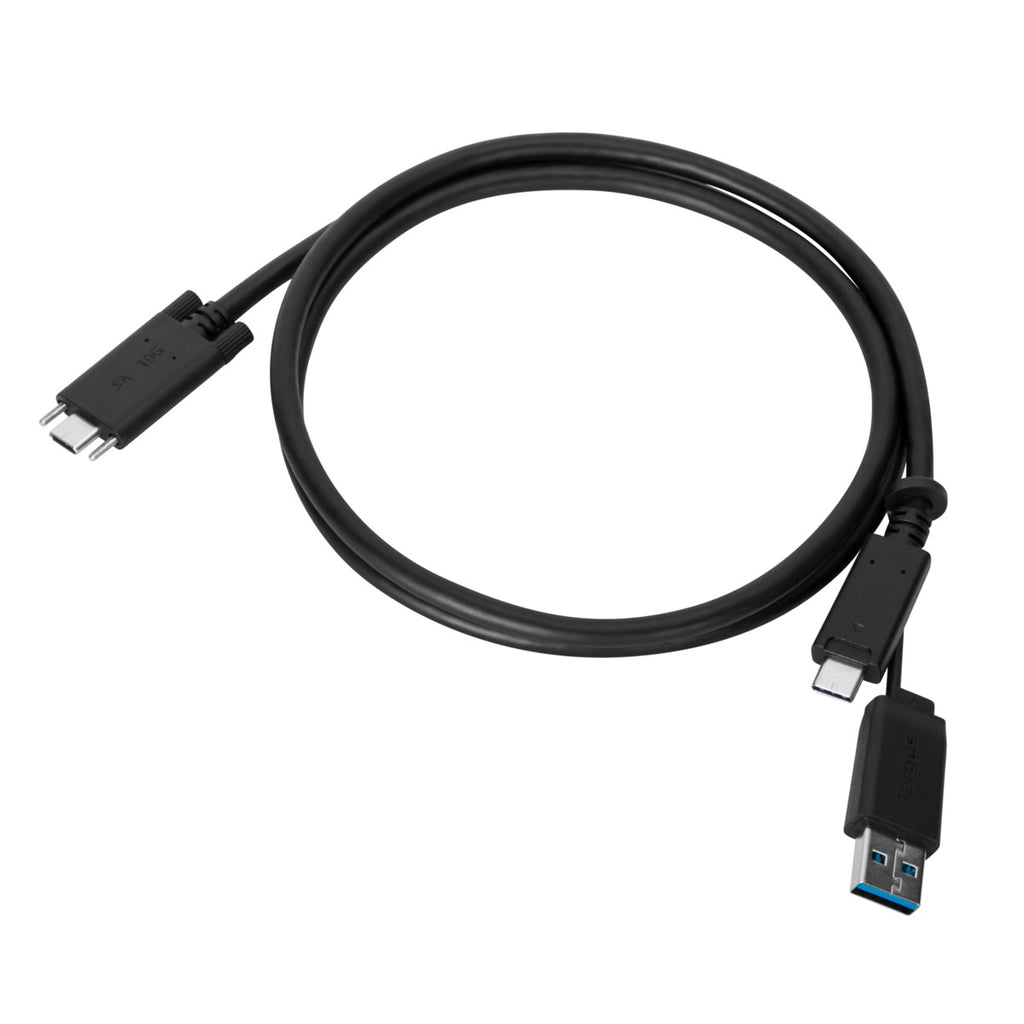

A. 1M USB-C Male with Screw to USB-C 10Gbps Male Cable with USB-A Tether (part #ACC1133GLX)
B. Dock

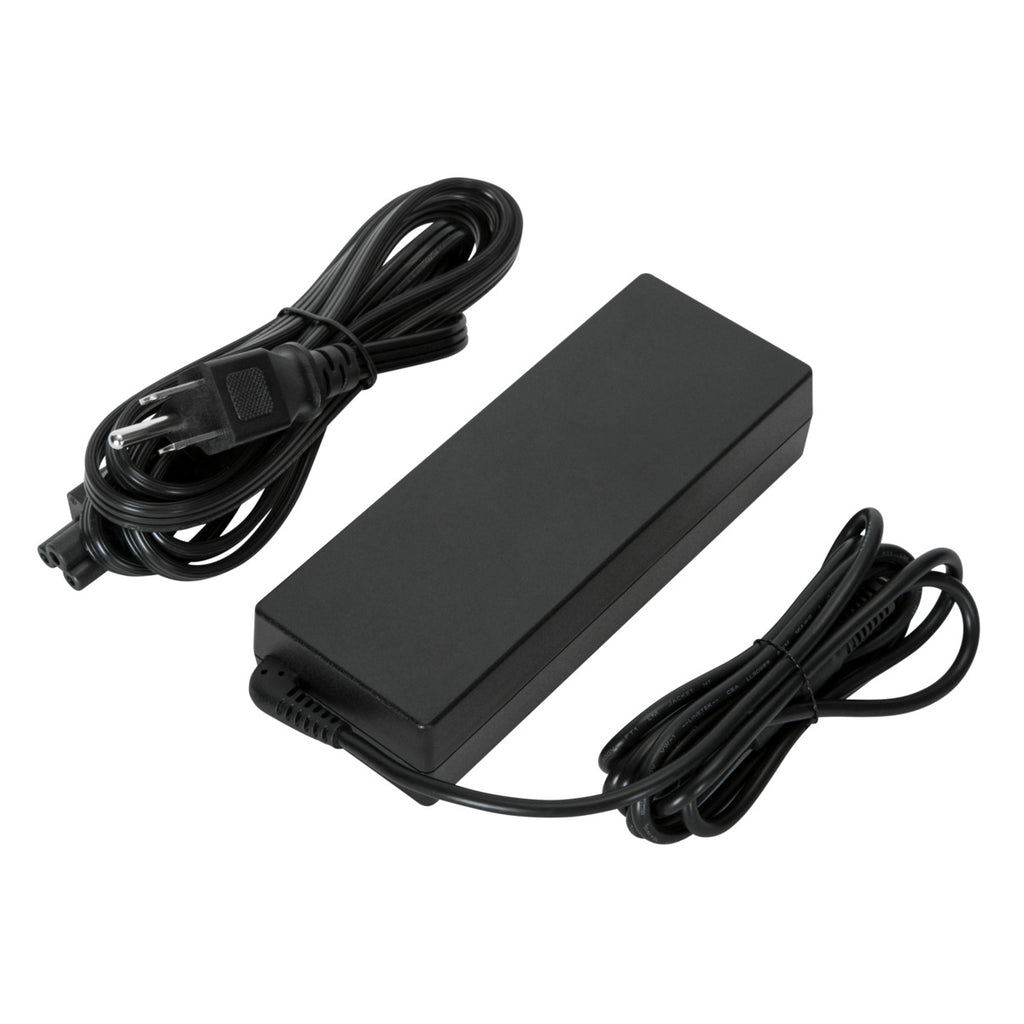

C. Adapter, AC to DC, output: 20V, 5A, 100W, Input: C6, O/P barrel: 7.5mm, level VI (part #800-0491-001A)
D. Cable, Input AC cable cord set , 3pins, 1.8M, C5 connector (part #511-0518-001A)

Specifications
  • Connection Technology
    Universal (DP Alt Mode, TB4, TB3 Compatible)
  • Host Port Compatibility
    USB-C & USB-A
  • Works With
    Windows®, macOS®, Android®,
 Chrome OS®, Ubuntu™
  • Ethernet
    Yes
  • Max Host Power
    100W
  • Output Voltages
    5V, 9V, 12V, 15V, 20V
  • Power Source
    Wall
  • HDMI
    0
  • DisplayPort
    2
  • Mini DisplayPort
    0
  • VGA
    0
  • DVI-D
    0
  • DVI-I
    0
  • Total USB-A Ports
    3
  • Fast Charging Ports
  • USB-C Ports / 3.2 Gen 2
    1
  • Thunderbolt Ports
    0
  • Audio Ports
    1

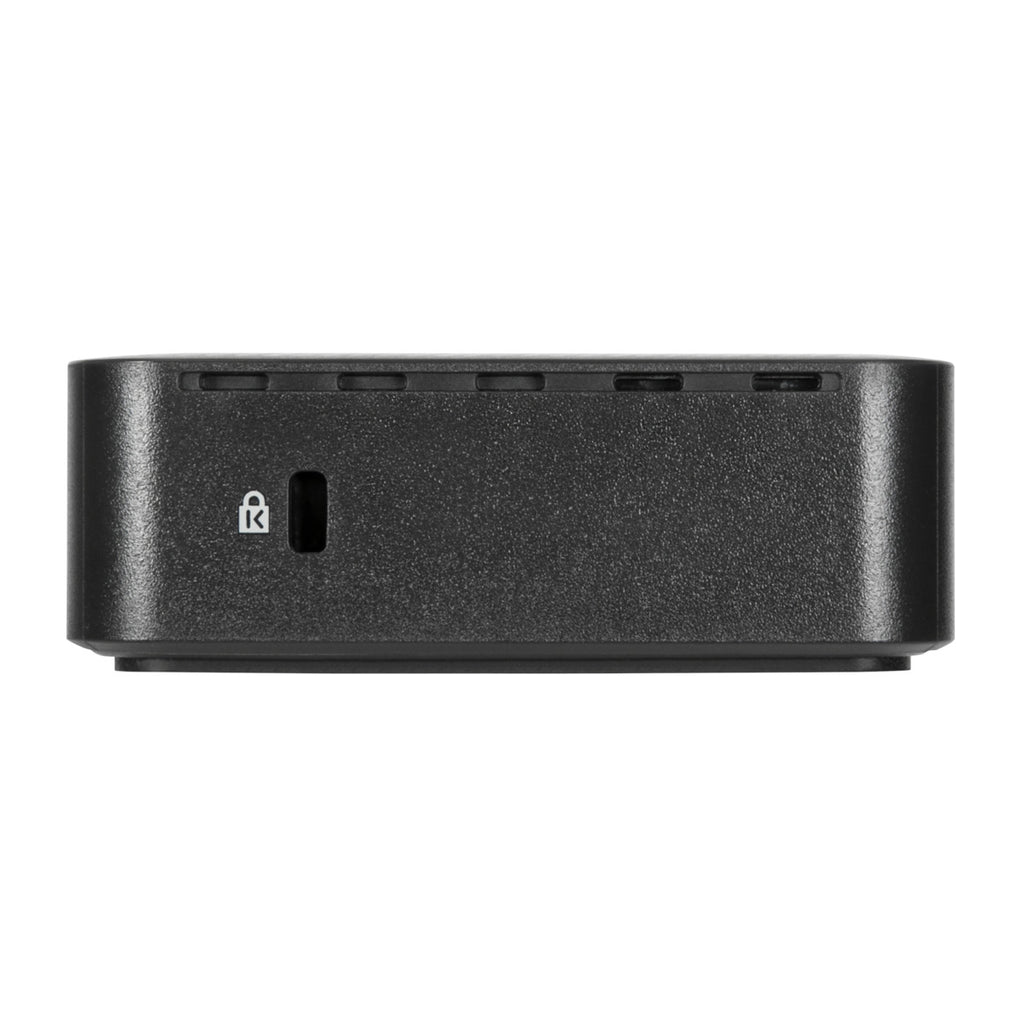

  • Lock Slot Compatibility
    Kensington® T-bar™
  • Color
    Gray
  • Dimensions
    6.5"X 3.25" X 1.13" (L x W x H)
  • Weight
    1 lb
  • Warranty
    Limited 5-year Warranty
  • TAA Compliant
    No
  • UPC
    092636369118
